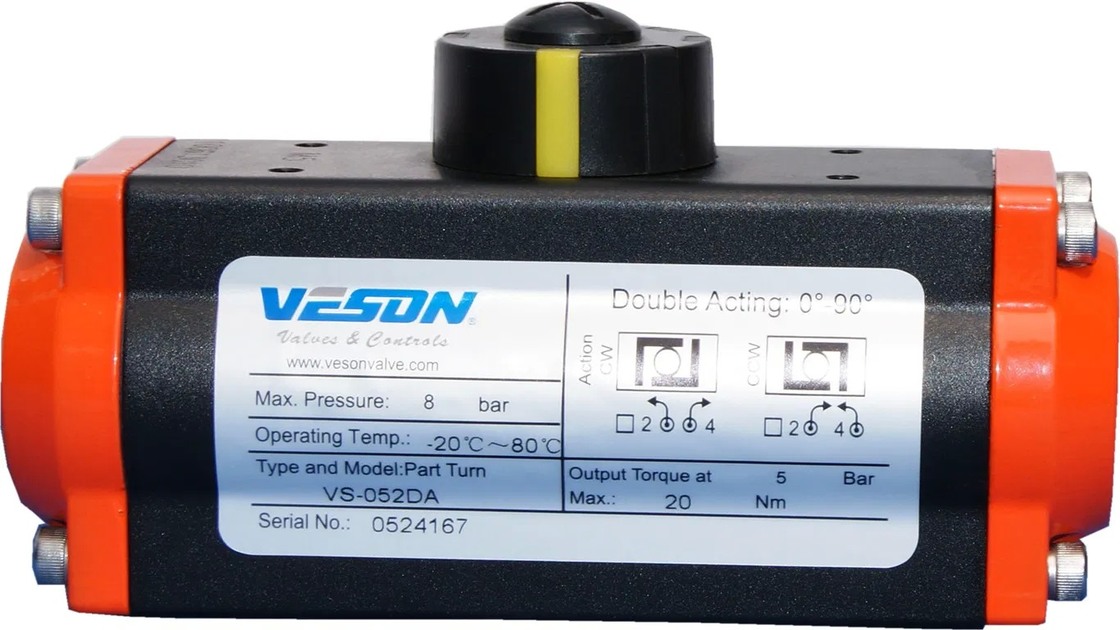

ISO5211 & DIN3337 Standard VS-052~VS-400 Model 50000PC/Y Aluminum Pneumatic Valve Actuator
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Direction de la pression: | Cylindre à double action | Matériel de pignon: | Acier allié durci |
| Revêtement de pignon: | Nickelé (plus de 15um) | Matériau du corps de l'actionneur: | Extrusion d'aluminium |
| Revêtement de l'actionneur: | Anodisé dur (plus de 30um) | Matériel de monture: | Die Casting en aluminium |
| Revêtement d'embout: | Enduit époxy (plus de 80um) | Matériau de piston: | Die Casting en aluminium |
| Revêtement des pistons: | Anodisé dur (plus de 30um) | Ajustement des voyages: | ±5º dans les deux positions |
| Matériau de printemps: | Acier à haute limite élastique | Revêtement de printemps: | Enduit d'époxyde |
| Matériau des roulements: | Composé très durable | ||
| Mettre en évidence: | ISO5211 & DIN3337 Pneumatic Actuator,VS-052~VS-400 Valve Actuator,50000PC/Y Air Actuator |
||
Description de produit
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
The hardened alloy steel pinion features precision grinding and Nickel plating (over 15μm) to reduce friction and provide maximum wear resistance. Fully compliant with ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated finishes available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE Coated treatment available as an option.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston with high-quality guides. The twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs allow for safe and rapid disassembly.
Highly durable compound material provides high thrust stability with minimal friction and long operational life.
