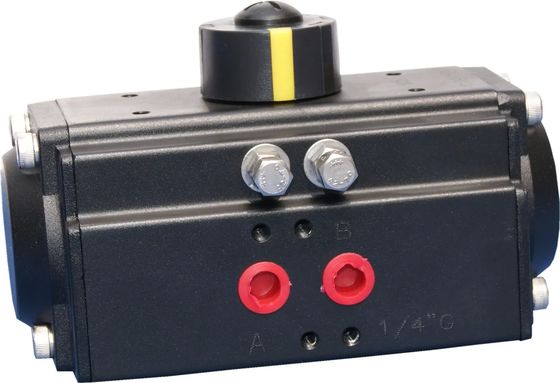

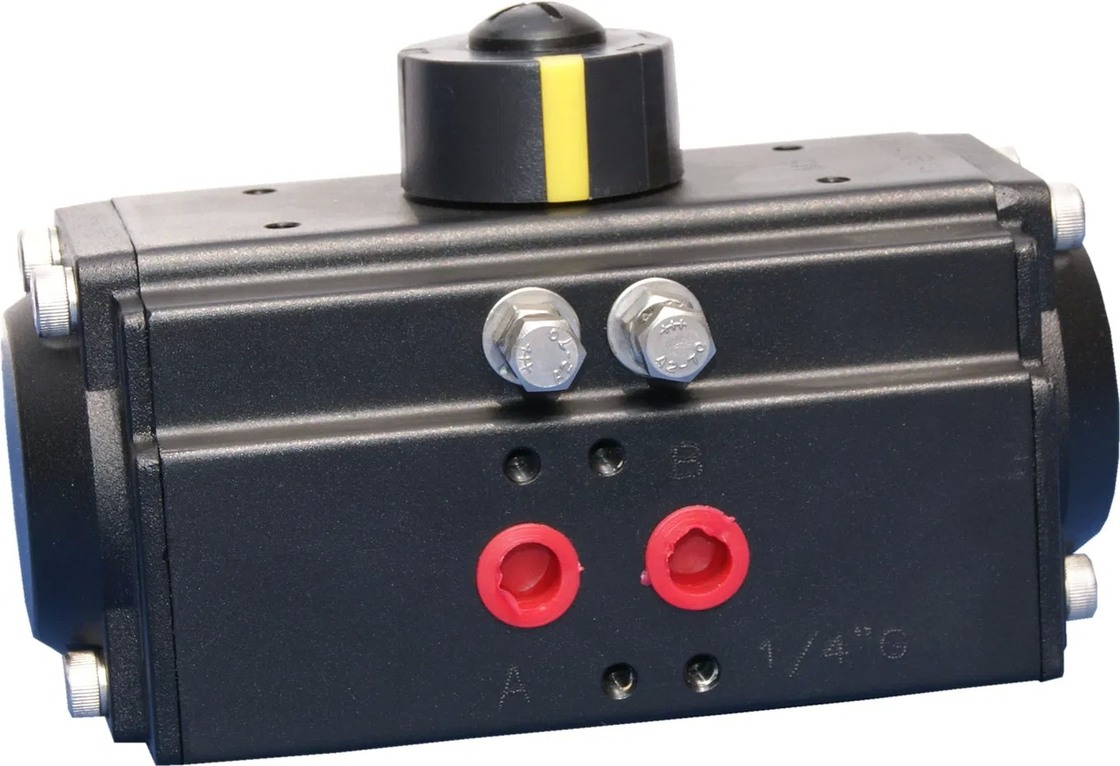

Hard Anodized Aluminum Pneumatic Cylinder with Epoxy Coated End Caps and Travel Adjustment ±5º
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Direction de la pression: | Cylindre à double action | Matériel de pignon: | Acier allié durci |
| Placage de pignon: | Nickelé (plus de 15um) | Matériau du corps de l'actionneur: | Extrusion d'aluminium |
| Traitement du corps de l'actionneur: | Anodisé dur (plus de 30um) | Matériel de monture: | Die Casting en aluminium |
| Traitement des embouts: | Enduit époxy (plus de 80um) | Matériau de piston: | Die Casting en aluminium |
| Traitement des pistons: | Anodisé dur (plus de 30um) | Ajustement des voyages: | ±5º dans les deux positions |
| Matériau de printemps: | Acier à haute limite élastique | Revêtement de printemps: | Enduit d'époxyde |
| Matériau des roulements: | Composé très durable | ||
| Mettre en évidence: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Description de produit
China Manufacturer Pneumatic Cylinder
Product Features
- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
