Precision Engineered Medium Pressure Low Temperature Pneumatic Rack and Pinion Actuator for Valve Actuation
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Forme modifiée: | Type de changement |
|---|---|---|---|
| Type de travail: | Rotatif | Pression: | Pression moyenne |
| Température de travail: | Basse température | Type d'acteur: | Double-jeu |
| Matériel: | Aluminium | Structure: | Crémaillère |
| Source d'énergie: | Pneumatique | Type de produit: | Actionneur pneumatique à crémaillère et pignon |
| Actionnement: | Quatrième tour | Type de contrôle: | marche/arrêt, positionnement, modulation, ESD |
| Type de soupape: | Boule, papillon, bouchon et tout autre quart de tour | Température de fonctionnement: | -20 ° C à + 80 ° C (-4 ° F à + 176 ° F) |
| Couple: | 12 Nm à 6 000 Nm | Pression de fonctionnement: | 8,3 bars / 120 psi |
| Mettre en évidence: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
Description de produit
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

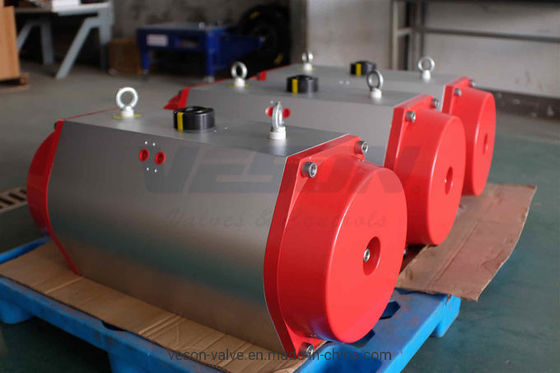

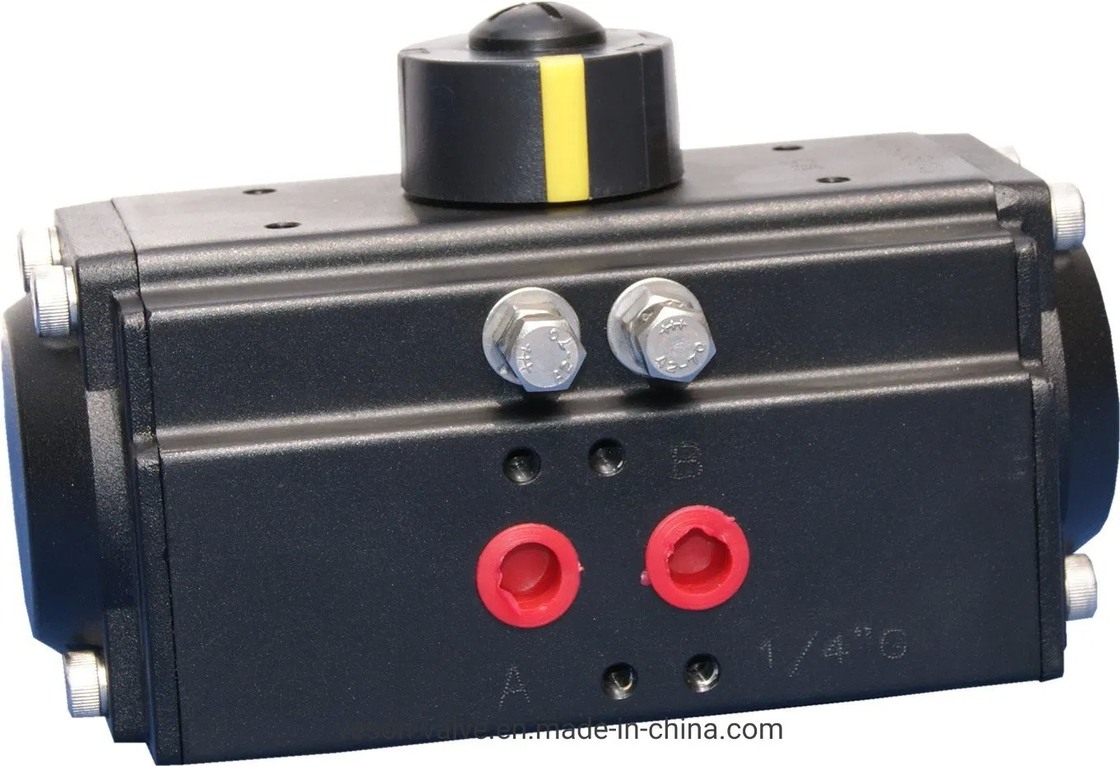

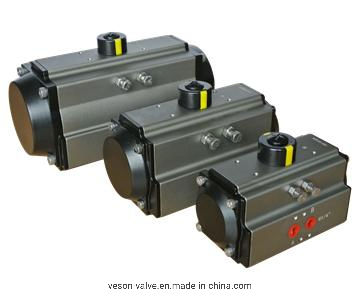

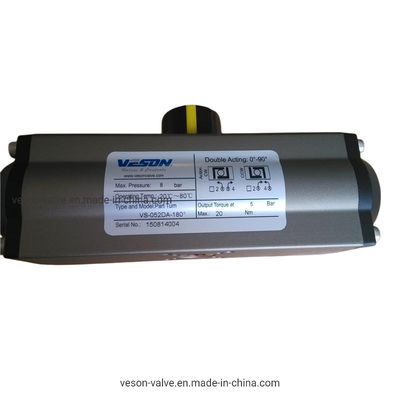

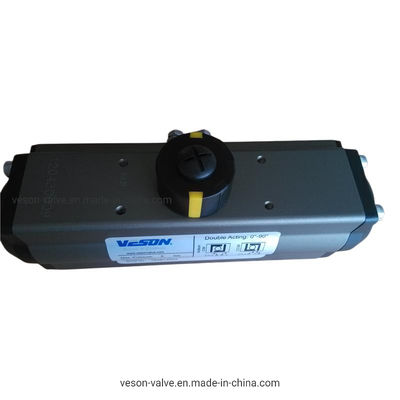

Product Images
