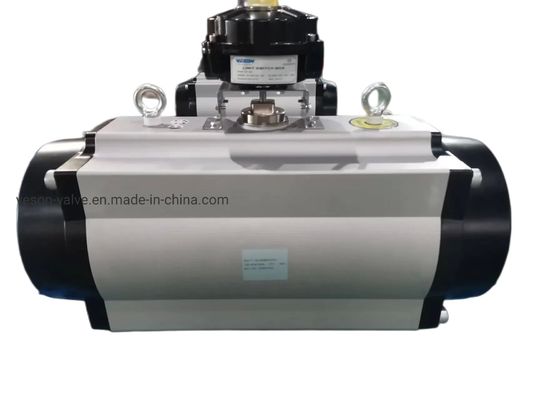

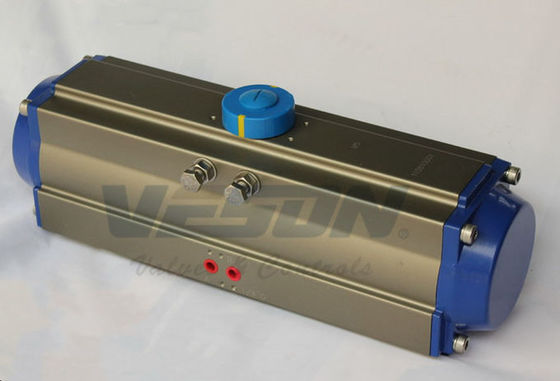

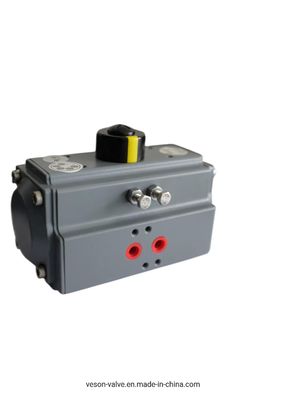

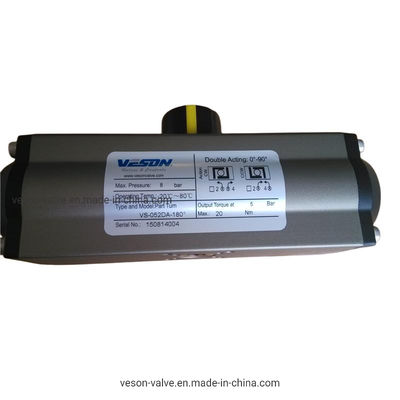

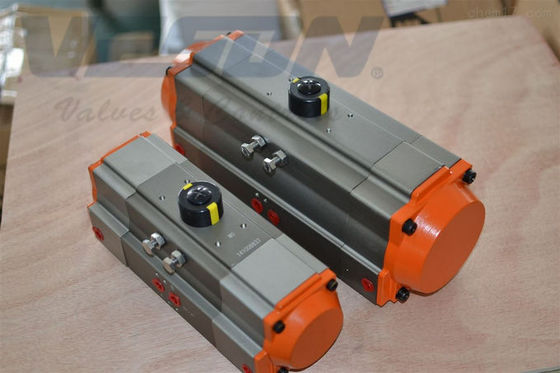

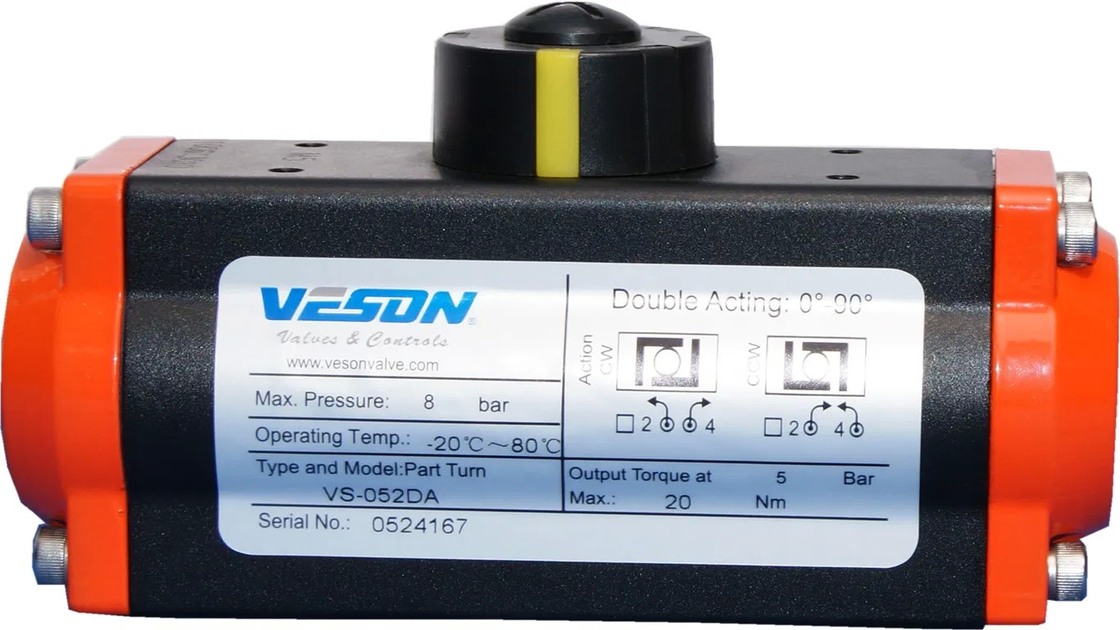

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Forme modifiée: | Marche/Arrêt |
|---|---|---|---|
| Type de travail: | Rotatif | Pression: | Pression moyenne |
| Température de travail: | Température normale | Type d'acteur: | Double-jeu |
| Matériel: | Aluminium | Structure: | Crémaillère |
| Matériel de pignon: | Acier allié durci | Revêtement de pignon: | Nickelé (plus de 15um) |
| Revêtement du corps de l'actionneur: | Anodisé dur (plus de 30um) | Revêtement d'embout: | Enduit époxy (plus de 80um) |
| Revêtement des pistons: | Anodisé dur (plus de 30um) | Ajustement des voyages: | ±5º |
| Revêtement de printemps: | Enduit d'époxyde | ||
| Mettre en évidence: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Description de produit
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
