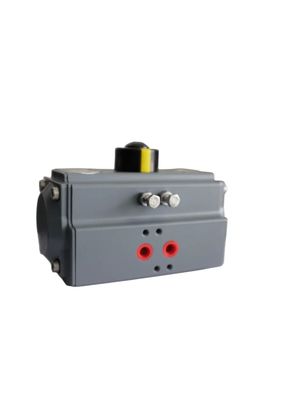

Epoxy Coated Pneumatic Actuator with ISO Pad 5211 and Travel Adjustment ±5º for Ball Valves with Limit Switch Boxes
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Direction de la pression: | Cylindre à double action | Conduite: | Actionneur pneumatique |
| Matériel de pignon: | Acier allié durci | Revêtement de pignon: | Nickelé (plus de 15um) |
| Corps de l'actionneur: | Extrusion d'aluminium | Revêtement du corps: | Anodisé dur (plus de 30um) |
| Monture: | Die Casting en aluminium | Revêtement d'embout: | Enduit époxy (plus de 80um) |
| Matériau de piston: | Die Casting en aluminium | Revêtement des pistons: | Anodisé dur (plus de 30um) |
| Ajustement des voyages: | ±5º | Matériau des ressorts: | Acier à haute limite élastique |
| Revêtement des ressorts: | Enduit d'époxyde | ||
| Mettre en évidence: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Description de produit
Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
