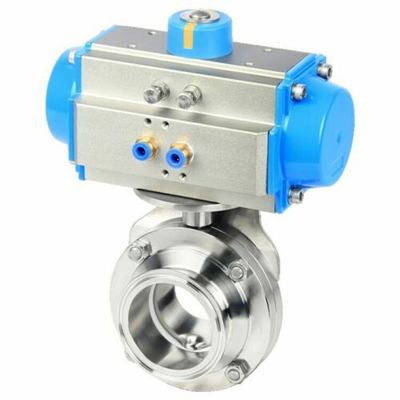

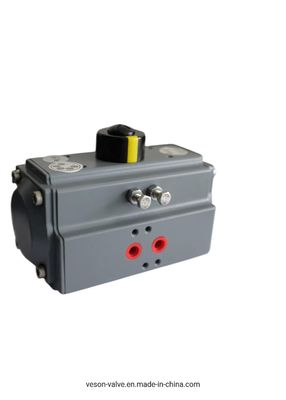

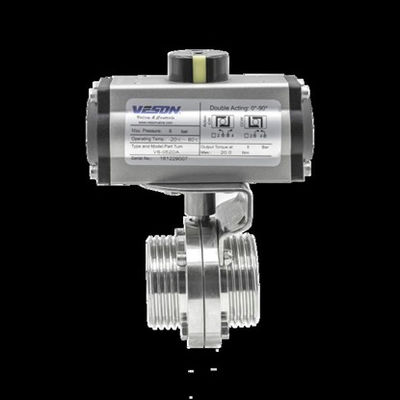

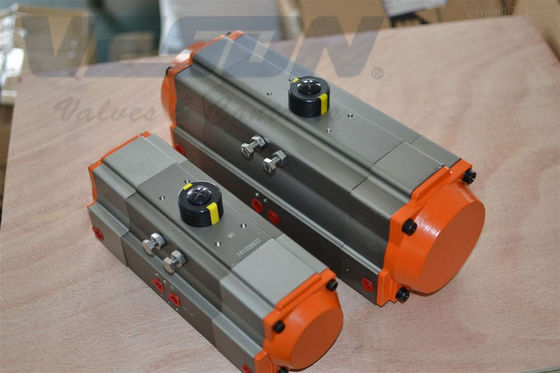

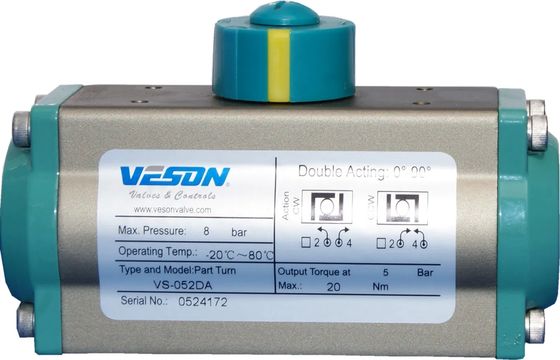

Pneumatic Actuator with Travel Adjustment ±5º Position Indicator and High Performance Springs for Valve Control
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Type de travail: | Rotatif |
|---|---|---|---|
| Pression: | Pression moyenne | Température de travail: | Température normale |
| Matériel: | Aluminium | Matériel de pignon: | Acier allié durci |
| Revêtement de pignon: | Nickelé (plus de 15um) | Revêtement du corps de l'actionneur: | Anodisé dur (plus de 30um) |
| Revêtement d'embout: | Enduit époxy (plus de 80um) | Revêtement des pistons: | Anodisé dur (plus de 30um) |
| Ajustement des voyages: | ±5º | Matériau des ressorts: | Acier à haute limite élastique |
| Revêtement des ressorts: | Enduit d'époxyde | Matériau des roulements: | Composé très durable |
| Capacité de production: | 50000pc / y | ||
| Mettre en évidence: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
Description de produit
Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
