Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle n °: | VS-063DA | Formulaire de connexion: | Bride |
|---|---|---|---|
| Structure: | Scellage central | Sceau de joint: | Force scellée |
| Tige de soupape: | Normale | Pression de travail: | À mi-pression (2,5MPa <pn <6,4MPa) |
| Température de travail: | La température moyenne (120°C| Sceller: |
Scellé doux |
|
| Carrosserie: | Tôle | Spécification de taille: | 2 pouces-24 pouces |
| Pression d'air de l'actionneur: | 80-120 psi | La vie du cycle de l'actionneur: | 1 million de cycles |
| Conception de l'actionneur: | pignon de support | Note résistante des intempéries: | IP66 et IP68 |
| Norme de montage: | ISO5211 | ||
| Mettre en évidence: | Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve |
||
Description de produit

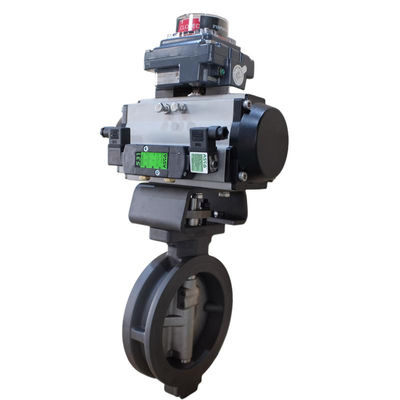

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended lifespan with unique wave line seat and special disc shape design
- Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
- Increased flow capacity through unique profile disc and two-piece shaft design
- Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design for reliable operation
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof rating
- Anodized aluminum body with epoxy-polyester covers
- Compatible with dry or lubricated pilot air
- Namur & ISO mounting options

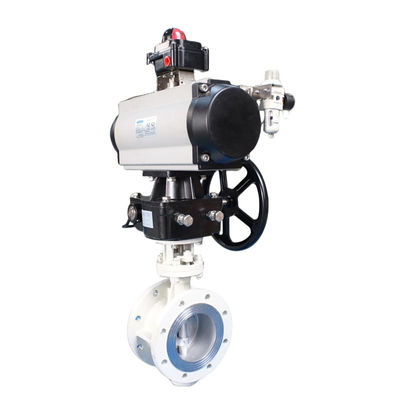

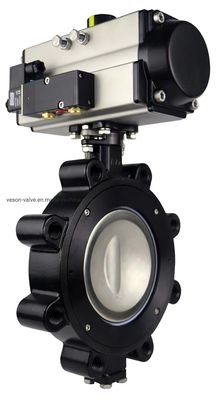

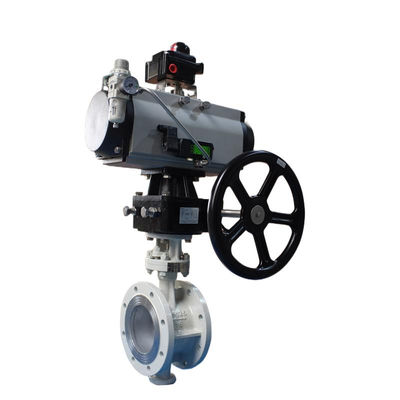

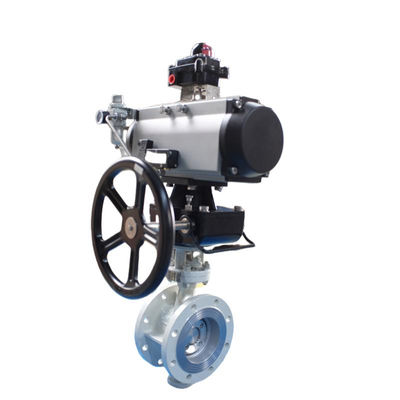

Product Images
