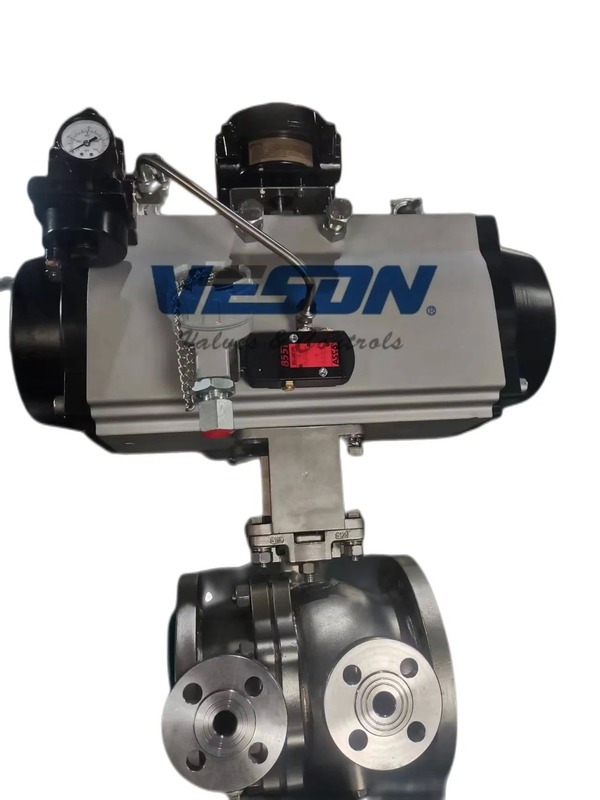

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Type de canal: | Type directement | Structure: | Vanne à bille flottante |
|---|---|---|---|
| Type de soupape: | Vanne à bille flottante | Note de classe: | 150 # --- 600 # PN16-PN110 |
| Plage de taille: | 1/2 "-24" DN15-DN600 | Matériau du corps: | Acier au carbone, acier inoxydable, acier inoxydable duplex, bronze, galet |
| Connexion finale: | Fin de bride (RF, RTJ) | Type d'opération: | Manuel, vitesse, pneumatique, électrique |
| Cote de pression: | Classe 150 - Classe 2500 ou PN 16 - PN 420 | Options matérielles: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C9 |
| Conservation de la chaleur: | Oui | isolation à froid: | Oui |
| Diamètre du débit: | De diamètre complet | Performance de fuite: | Aucune fuite |
| Type de construction: | Monolithique | ||
| Mettre en évidence: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Description de produit
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
