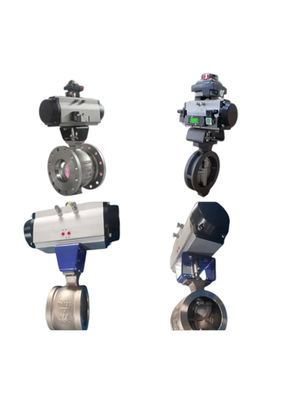

Wafer Type V Port Pneumatic Ball Valve with Double Action Actuator Class 150-600 PN16-PN110 Size 1/2"-24"
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Type de canal: | Type directement | Structure: | Vanne à bille flottante |
|---|---|---|---|
| Type de soupape: | Vanne à bille flottante | Note de classe: | 150 # --- 600 # PN16-PN110 |
| Plage de taille: | 1/2 "-24" DN15-DN600 | Matériau du corps: | Acier au carbone, acier inoxydable, acier inoxydable duplex, bronze, galet |
| Connexion finale: | Fin de bride (RF, RTJ) | Type d'opération: | Manuel, vitesse, pneumatique, électrique |
| Cote de pression: | Classe 150 - Classe 2500 ou PN 16 - PN 420 | Options matérielles: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super duplex, Inconel, Al |
| Conservation de la chaleur: | Oui | isolation à froid: | Oui |
| Diamètre complet: | Oui | Performance de fuite: | Aucune fuite |
| Type de construction: | Monolithique | ||
| Mettre en évidence: | Class 150-600 Pneumatic Ball Valve,PN16-PN110 V Port Ball Valve,Size 1/2"-24" Wafer Type Ball Valve |
||
Description de produit
Wafer Type V Port Ball Valve with Double Action Actuator
Product Specifications
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket Ball Valves Description
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in industries including petroleum, chemical, metallurgical, pharmaceutical, and food processing.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight compared to traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability versus cast alternatives.
Product Features
- Superior heat preservation and cold insulation capabilities
- Full-diameter design reduces heat loss
- Monolithic construction for better sealing
- Compact and lightweight design
- Enhanced pressure resistance
Applicable Standards
Sizes:
1/2" - 24", DN 15 - DN 600
Pressure Rating:
Class150 - Class 2500 or PN 16 - PN 420
Material of Valve Body:
WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
