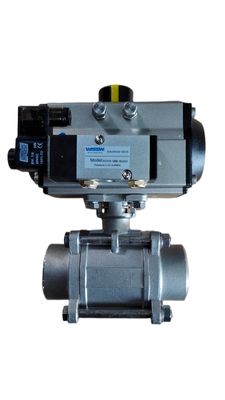

ASME B16.34 Pneumatic Ball Valve with 8Nm-4583N.m Torque and CF8/CF8M/CF3M Construction
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle n °: | VS-210SR08-FO | Formulaire de connexion: | Bride |
|---|---|---|---|
| Type de canal: | Droit | Structure: | Vanne à bille flottante |
| Vanne: | 1/4 "~ 4" (DN6 ~ DN100) | Matériau du corps: | CF8 / CF8M / CF3M |
| Matériau de balle: | CF8 / CF8M / CF3M | Matériau de siège: | PTFE, RTFE, Graphite et autres |
| Cote de pression: | 1000wog, 2000wog | Type de connexion: | Femme Femelle, SW, Butt-Weld |
| Plage de couple: | 8NM-4583N.M | Fonction: | Ventilateur d'évacuation, vanne de dégagement, vanne de contournement |
| Type d'actionnement: | Quartier de feu pneumatique | Type de soupape: | 2 voies |
| Connexion finale: | Extrémité vissée de 3 pc | ||
| Mettre en évidence: | ASME B16.34 Pneumatic Ball Valve,8Nm-4583N.m Actuated Ball Valve,CF8/CF8M/CF3M Pneumatic Actuated Valve |
||
Description de produit

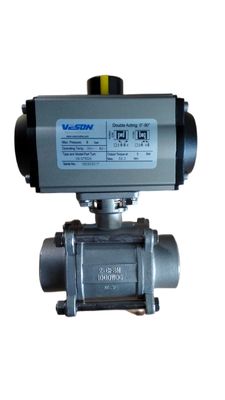

2-Way Pneumatically Actuated Ball Valve Pneumatic Quarter-Turn Actuator Actuated Valve
VS series pneumatic actuated ball valve (3-PC SCREWED END) offers reliable performance for industrial fluid control applications.
Product Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-PC Screwed End Ball Valve (two way) |
| Valve Size | 1/4"~4" (DN6~DN100) |
| Body/Ball Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Rating | 1000WOG, 2000WOG |
| Connection | Female Thread, SW (Socket Welded), Butt-weld |
Key Features
- Pneumatic quarter-turn actuator for precise control
- Durable construction with CF8/CF8M/CF3M materials
- Multiple seat material options for different applications
- Available in various connection types for flexible installation
- Suitable for high-pressure applications with 1000WOG/2000WOG ratings
