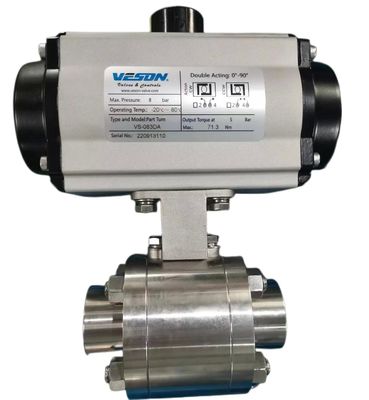

3 Piece Pneumatic Ball Valve with ASME Class 800 and ASME Class 1500 Forged Steel Floating Ball Valve
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Type de canal: | Type directement | Type de structure: | Vanne à bille flottante |
|---|---|---|---|
| Type de soupape: | Vanne à bille flottante | Type d'alésage: | Alésage régulier (réduit), alésage complet |
| Classe de pression: | Classe 800 ASME, 1500 | Type de connexion: | Extrémité vissée ou filetée |
| Plage de taille: | 15 mm à 50 mm | Matériau du corps: | ASTM A 105, ASTM A 182 F 304, ASTM A 182 F 316, ASTM A 182 F 304L, ASTM A 182 F 316L |
| Matériau de balle: | ASTM A 351 Gr. CF 8 / CF 8M, ASTM A 182 F304 / F316, ASTM A 351 GR. CF 3 / CF 3M, ASTM A 182 F304L / | Matériau de la tige: | ASTM A 276 T (304/316, 304L / 316L, 410) |
| Matériau de siège à balle: | PTFE vierge / 25% de verre rempli, peek / Delrin / Grafoil | Matériau d'emballage de glande: | PTFE vierge / 25% de verre rempli, Grafoil |
| Étalon et matériau de noix: | ASTM A 193 GR. B7 / A 194 Gr. 2H, SS 304 / SS 316 | Type d'opération: | Levier manuel, actionneur pneumatique, actionneur électrique |
| Matériau de siège: | Ptfe, Peek, Delrin, Grafoil | ||
| Mettre en évidence: | 3 Piece Pneumatic Ball Valve,ASME Class 800 Floating Ball Valve,ASME Class 1500 Forged Ball Valve |
||
Description de produit
Pneumatic Actuator 3 Piece Floating Ball Valves Forged Ball Valve with Pneumatic Actuator
Our Veson Two Way Floating Ball Three Piece Forged Steel Ball Valve is available in Regular (Reduced) Bore and Full Bore configurations. Designed for demanding applications, it meets ASME Class 800 and 1500 standards with screwed or threaded end connections in sizes ranging from 15 mm to 50 mm.
Material Options
Available in multiple high-performance materials including ASTM A 105 (Forged Carbon Steel), ASTM A 182 F 304/304L (Forged Stainless Steel 304/304L), and ASTM A 182 F 316/316L (Forged Stainless Steel 316/316L). Operation options include Manual Lever, Pneumatic Actuator, and Electrical Actuator.
Key Features
- Premium quality forged body construction
- Heavy-duty, rugged design for industrial applications
- Extended service life with smooth operation
- Low operating torque requirements
- Positive shut-off capability
- No lubrication required for maintenance
Design & Test Specifications
| Component | Material Specifications |
|---|---|
| Body & End Piece |
ASTM A 105 - Forged Carbon Steel ASTM A 182 F 304/304L - Forged Stainless Steel ASTM A 182 F 316/316L - Forged Stainless Steel ASTM A 182 F 11/F 22 - Alloy Steel |
| Ball |
ASTM A 351 GR. CF 8/CF 8M (SS 304/SS 316) ASTM A 182 F304/F316 (SS 304/SS 316) ASTM A 351 GR. CF 3/CF 3M (SS 304L/SS 316L) ASTM A 182 F304L/F316L (SS 304L/SS 316L) |
| Stem |
304/316 (SS 304/SS 316) - ASTM A 276 T 304L/316L (SS 304L/SS 316L) - ASTM A 276 T ASTM A 276 T - 410 (SS 410) |
| Ball Seat & Body Seal |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT PEEK/Delrin/Grafoil - Graphite Ring |
| Gland Packing |
PTFE Virgin/25% Glass Filled - GFT/Carbon Filled - CFT Grafoil - Graphite Ring |
| Stud & Nut |
ASTM A 193 GR. B7/A 194 GR. 2H S.S. 304/S.S. 316 |
