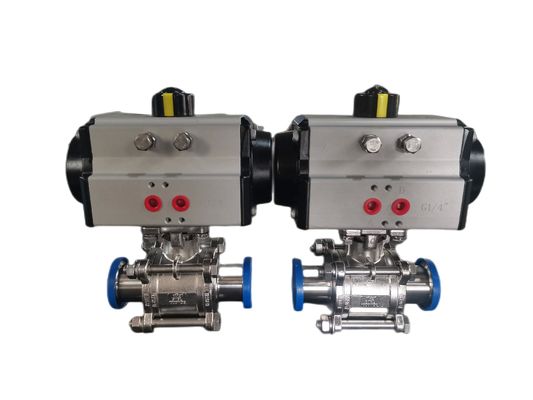

Pneumatic Ball Valve with Tri Clamp Connection Fireproof and Long Life Span for Industrial Usage
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle n °: | VS-140SR08-FO | Formulaire de connexion: | Bride |
|---|---|---|---|
| Mode de conduite: | Pneumatique | Pression nominale: | La classe ANSI 150-900 |
| Canal: | Type directement | Structure: | Vanne à bille flottante |
| Taper: | Vanne à bille flottante | Spécification: | 1 pouce à 12 pouces |
| Matériel: | Acier inoxydable SS304 | Temps de clôture: | Moins d'une seconde |
| Cycles de test: | Plus de 100 000 cycles | Pression de fonctionnement: | 60-90 psi |
| Pression nominale: | 1 000 psi wog | Matériau de balle: | SS316 Acier inoxydable |
| Joint: | Ptfe | ||
| Mettre en évidence: | Tri Clamp Connection Pneumatic Ball Valve,Fireproof Sanitary Ball Valve,Long Life Span Hygienic Ball Valve |
||
Description de produit
Pneumatic Butterfly Valves & Ball Valves Tri Clamp Sanitary Valves Pneumatic Hygienic Ball Valves
Pneumatic Hygienic Ball Valves
Also known as non-retention ball valves, these feature a horizontal actuator. The uniquely designed valve body prevents medium retention after flow, making them ideal for pharmaceutical and biotechnology industries.

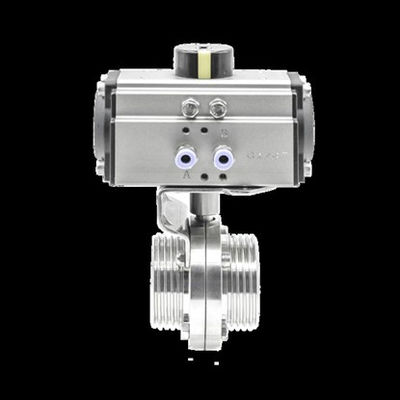

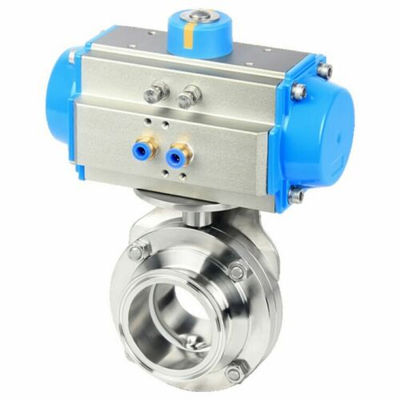

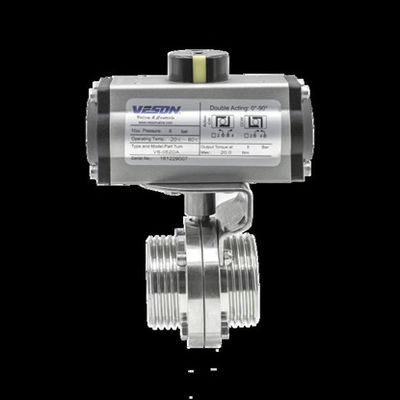

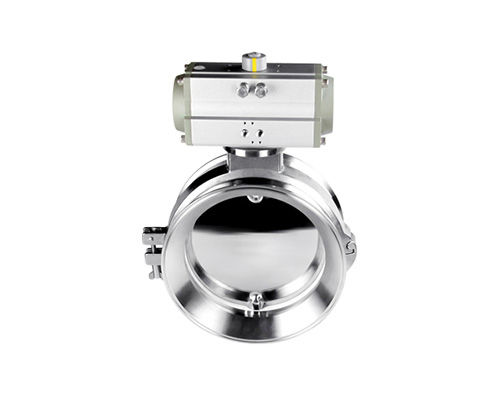

Sanitary Pneumatic Butterfly Valves
Veson heavy duty sanitary pneumatic butterfly valves provide excellent on-off service and flow control solutions using air pressure actuation.
- Stainless steel SS304 valve & body
- Fireproof construction
- Long life span
- Maintenance-free pneumatic mechanism
- Fast operation: less than 1 second at 80 PSI
- Tested at over 100,000 cycles
- Visual position indicator
- Available in air/air configuration
- Suitable for normal and closed applications

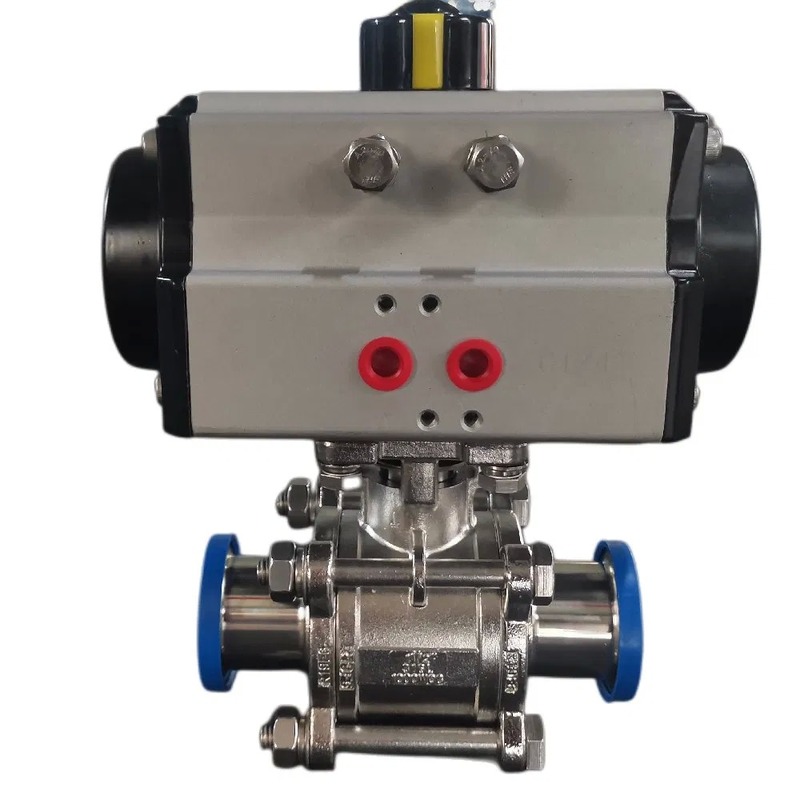

Pneumatic Ball Valves
Veson heavy duty pneumatic ball valves offer superior on-off service and flow control using air pressure actuation.
- Precision 2-way pneumatic encapsulated ball valve
- Encapsulated PTFE seats with Tri Clamp connection
- In-line design for maximum flow capacity
- Flexible installation in any position
- SS316 stainless steel ball
- PTFE gasket compliant with FDA 177.2600
- Full port design
- Rated to 1,000 PSI WOG
- Completely rebuildable
- 60-90 PSI operating range
