3-WAY Pneumatic Actuated Ball Valve with Pn40 Pressure Rating and 1000WOG for Industrial Applications
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle n °: | VS-240SR08-FO | Formulaire de connexion: | Bride |
|---|---|---|---|
| Mode de conduite: | Pneumatique | Pression nominale: | PN1.0-32.0MPA |
| Canal: | Type directement | Structure: | Vanne à bille flottante |
| Taper: | Vanne à bille flottante | Température: | Température normale |
| Matériau du corps: | CS SS | Pression: | PN40 |
| Spécification: | 1 pouce à 12 pouces | Type de boule: | T ou L Forme |
| Vanne: | 1/4 "~ 4" (DN6 ~ DN100) | Matériau de siège: | PTFE, RTFE, Graphite et autres |
| Notation: | DIN: PN10 ~ PN40, ANSI: 150 # ~ 600 #, 1000wog | ||
| Mettre en évidence: | 3-WAY Pneumatic Ball Valve,Pn40 Pneumatic Actuated Ball Valve,1000WOG 3-WAY Ball Valve |
||
Description de produit

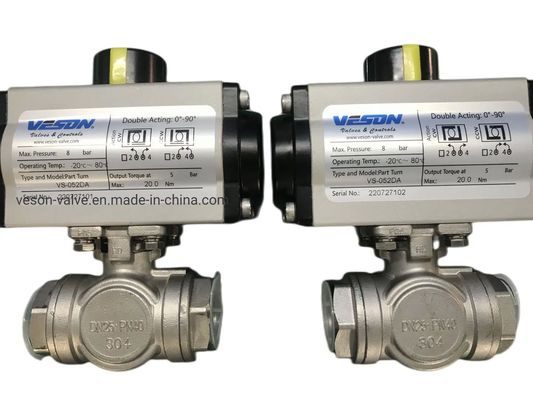

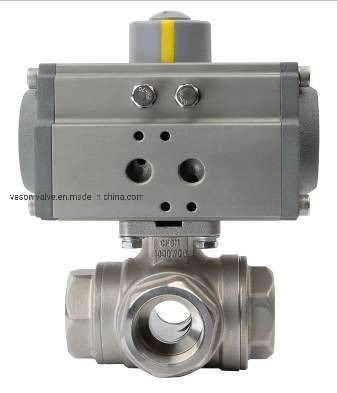

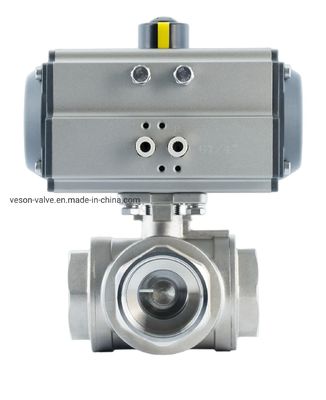

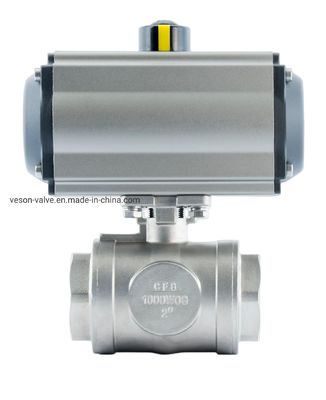

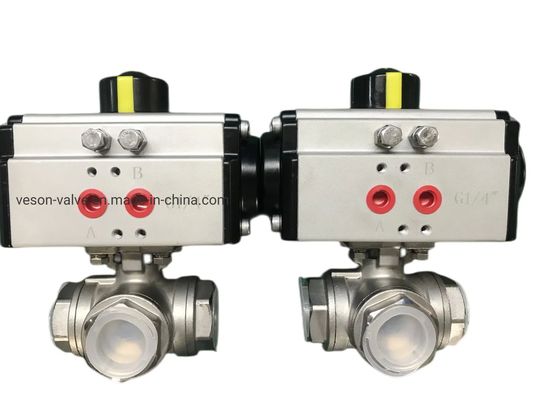

Pneumatic Actuated Ball Valve (3-WAY) Pn40 1000W.O.G
Product Description
VS series pneumatic actuated ball valve (3-WAY) featuring:
- Valve: Flanged End Ball Valve (3-way)
- Ball Type: T or L Shape
- Valve Size: 1/4"~4" (DN6~DN100)
- Body/Ball Material: WCB, CF8, CF8M, CF3M
- Seat Material: PTFE, RTFE, Graphite & Others
- Rating: DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG
- Connection: Female Thread, Flanged End
Product Images
Technical Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-WAY Flanged End Ball Valve |
| Ball Configuration | T or L Shape |
| Size Range | 1/4" to 4" (DN6 to DN100) |
| Body Materials | WCB, CF8, CF8M, CF3M |
| Seat Materials | PTFE, RTFE, Graphite & Others |
| Pressure Ratings | DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG |
| Connection Types | Female Thread, Flanged End |
