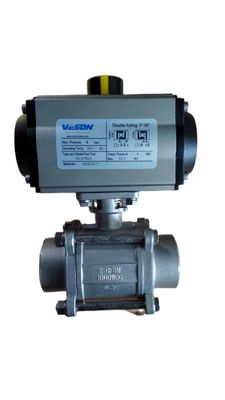

Pneumatic Actuated Ball Valve with 3-PC Design ANSI CLASS 150-900 and ASME B16.34 Standard
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle n °: | VS-240SR08-FO | Formulaire de connexion: | Bride |
|---|---|---|---|
| Mode de conduite: | Pneumatique | Pression nominale: | La classe ANSI 150-900 |
| Canal: | Type directement | Structure: | Vanne à bille flottante |
| Taper: | Vanne à bille flottante | Température: | Basse température |
| Classe de norme ANSI: | 150#, 300#, 600#, 900# | Vanne: | 1/4 "~ 4" (DN6 ~ DN100) |
| Matériau du corps: | CF8 / CF8M / CF3M | Matériau de siège: | PTFE, RTFE, Graphite et autres |
| Notation: | 1000wog, 2000wog | Connexion: | Femme Femelle, SW, Butt-Weld |
| Spécification: | 1 pouce à 12 pouces | ||
| Mettre en évidence: | 3-PC Design Pneumatic Ball Valve,ANSI CLASS 150-900 Actuated Ball Valve,ASME B16.34 3-PC Ball Valve |
||
Description de produit
Pneumatic Actuator Ball Valve 3-PC Screwed End Ball Valve 3PC Design Screwed End Socket End
Product Description
VS series pneumatic actuated ball valve (3-PC SCREWED END) featuring durable construction and versatile connection options for industrial applications.
Key Features
- Valve type: 3-PC Screwed End Ball Valve (two way)
- Available sizes: 1/4" to 4" (DN6 to DN100)
- Body/Ball material options: CF8/CF8M/CF3M
- Seat material options: PTFE, RTFE, Graphite & Others
- Pressure rating: 1000WOG, 2000WOG
- Connection types: Female Thread, SW (Socket Welded), Butt-weld
Specifications
| Feature | Specification |
|---|---|
| Valve Design | 3-Piece Screwed End |
| Size Range | 1/4" - 4" (DN6 - DN100) |
| Body Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Pressure Rating | 1000WOG, 2000WOG |
| Connection Types | Female Thread, Socket Welded, Butt-weld |
