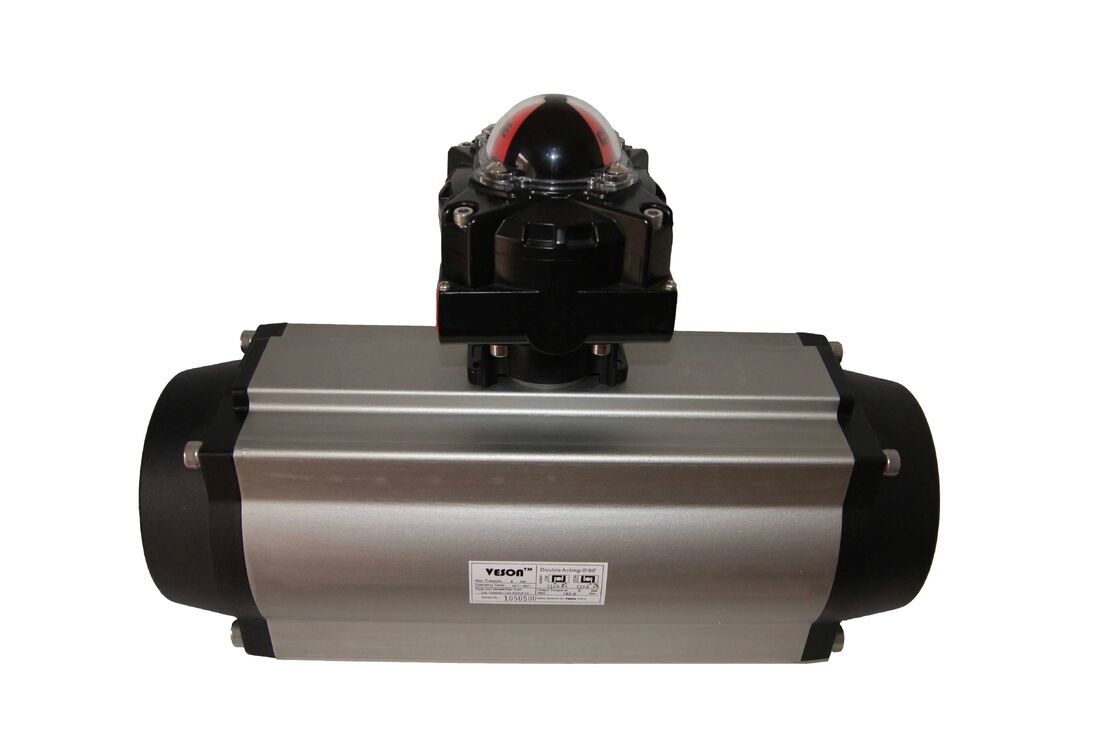

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Numéro de modèle.: | VS-210 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Standard: | Standard | Direction de la pression: | Cylindre à double action |
| Type à double effet de cylindre: | Double Rod Cylinder | Type spécial de cylindre: | Nombre de cylindres |
| Type de bouteille combinée: | Cylindre sous pression | Norme de conception: | ISO5211 DIN3337 |
| Forfait Transport: | Package de cas de contreplaqué | Spécification: | 1 pouce à 12 pouces |
| Marque déposée: | Veson ou cusomère "s | Origine: | Chine |
| Code HS: | 84123900 | Capacité de production: | 50000pc / y |
| Mettre en évidence: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Description de produit
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
