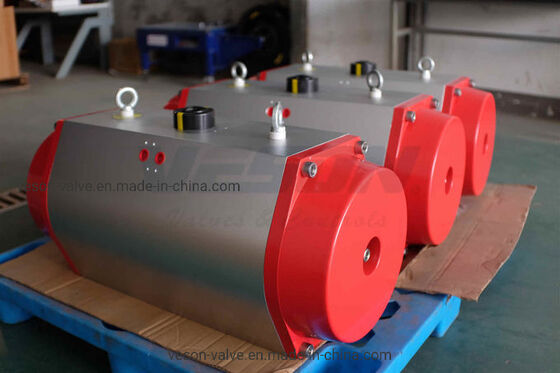

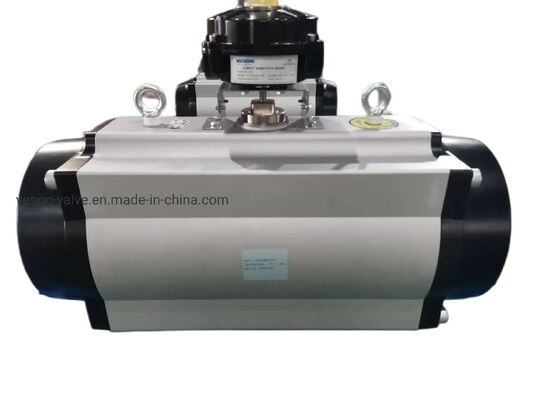

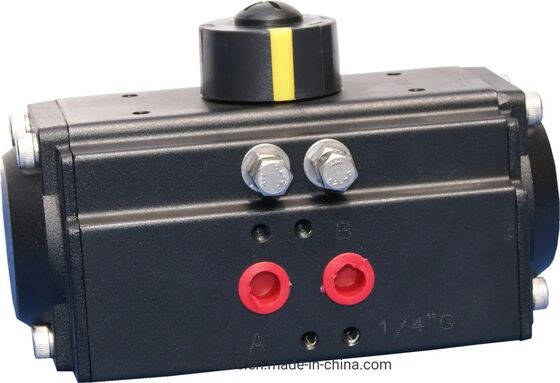

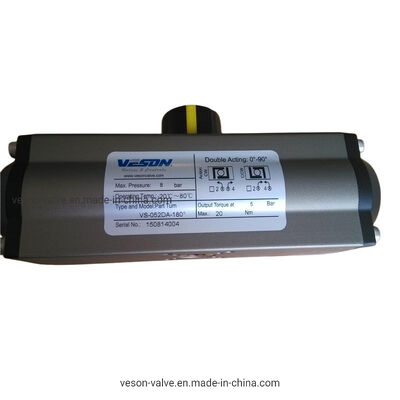

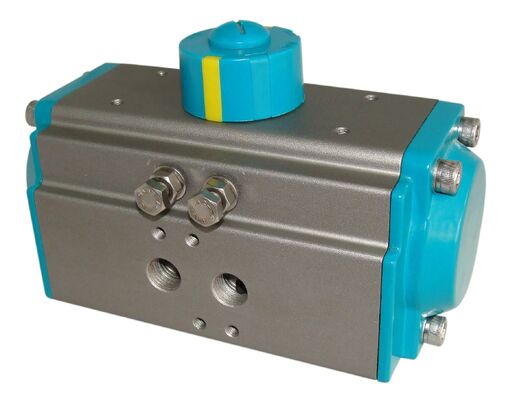

ISO5211/DIN3337 Compliant VDI/VDE3845 Compliant Hard Anodized Rack Pinion Pneumatic Actuator with Double Acting Spring Return

ISO5211/DIN3337 Compliant VDI/VDE3845 Compliant Hard Anodized Rack Pinion Pneumatic Actuator with Double Acting Spring Return

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min: 1
meilleur prix Contact

Détail Infomation
Numéro de modèle.: VS-063 Canal: Type directement
Structure: Piston Taper: Rack et pignon
Code HS: 84123900 Capacité de production: 50000pc / y
Mettre en évidence:

ISO5211 compliant pneumatic actuator

,

hard anodized rack pinion actuator

,

double acting spring return actuator

Description de produit

VS-063 (rack& pinion) have the following features.
> The output torque: Double: 43NM; Single: 7~16.4Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.

> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
