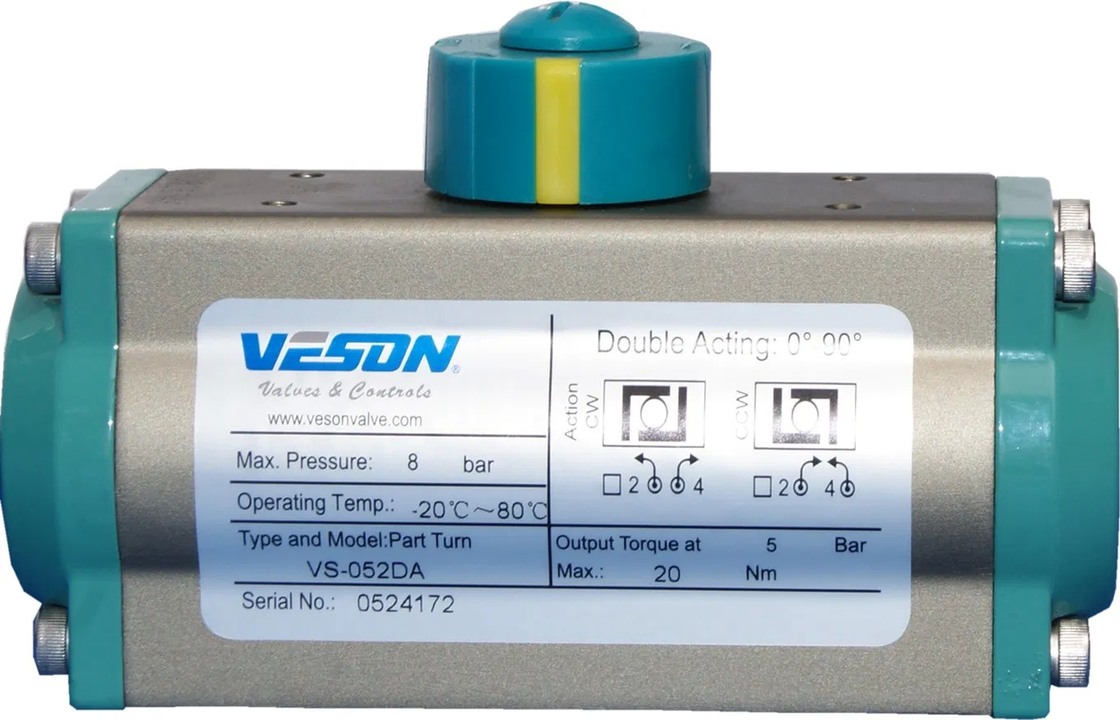

VESON Brand ISO5211 & DIN3337 Standard Pneumatic Actuator with Epoxy Coated End Cap and High Performance Springs
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Direction de la pression: | Cylindre à double action | Matériel de pignon: | Acier allié durci |
| Placage de pignon: | Nickelé (plus de 15um) | Matériau du corps de l'actionneur: | Extrusion d'aluminium |
| Traitement du corps de l'actionneur: | Anodisé dur (plus de 30um) | Matériel de monture: | Die Casting en aluminium |
| Traitement des embouts: | Enduit époxy (plus de 80um) | Matériau de piston: | Die Casting en aluminium |
| Traitement des pistons: | Anodisé dur (plus de 30um) | Ajustement des voyages: | ±5º |
| Matériau de printemps: | Acier à haute limite élastique | Revêtement de printemps: | Enduit d'époxyde |
| Matériau des roulements: | Composé très durable | ||
| Mettre en évidence: | ISO5211 & DIN3337 Standard Pneumatic Actuator,Epoxy Coated End Cap Air Actuator,High Performance Springs Pneumatic Air Actuator |
||
Description de produit
Air Torque Type Pneumatic Actuator
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments: PTFE Coated
Piston
- Precisely balanced and hard anodized die casting aluminum (over 30μm)
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs can be safely and rapidly disassembled
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long service life.
