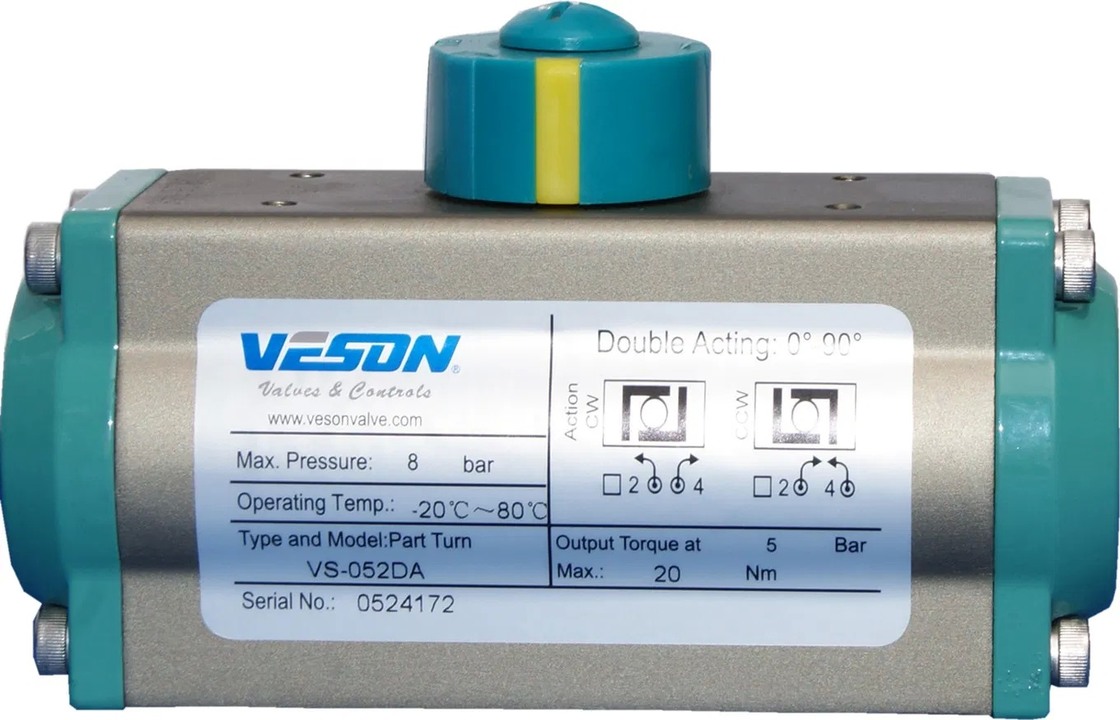

ISO5211 DIN3337 Standard Hard Anodized Aluminum Pneumatic Air Actuator with Double-acting Cylinder
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Modèle no.: | VS-052 ~ VS-400 | Pouvoir: | Pneumatique |
|---|---|---|---|
| Direction de la pression: | Cylindre à double action | Matériel de pignon: | Acier allié durci |
| Placage de pignon: | Nickelé (plus de 15um) | Matériau du corps de l'actionneur: | Extrusion d'aluminium |
| Traitement du corps de l'actionneur: | Anodisé dur (plus de 30um) | Matériel de monture: | Die Casting en aluminium |
| Traitement des embouts: | Enduit époxy (plus de 80um) | Matériau de piston: | Die Casting en aluminium |
| Traitement des pistons: | Anodisé dur (plus de 30um) | Ajustement des voyages: | ±5º |
| Matériau de printemps: | Acier à haute limite élastique | Traitement de printemps: | Enduit d'époxyde |
| Matériau des roulements: | Composé très durable | ||
| Mettre en évidence: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Description de produit
Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
